35kVA Power Conversion System

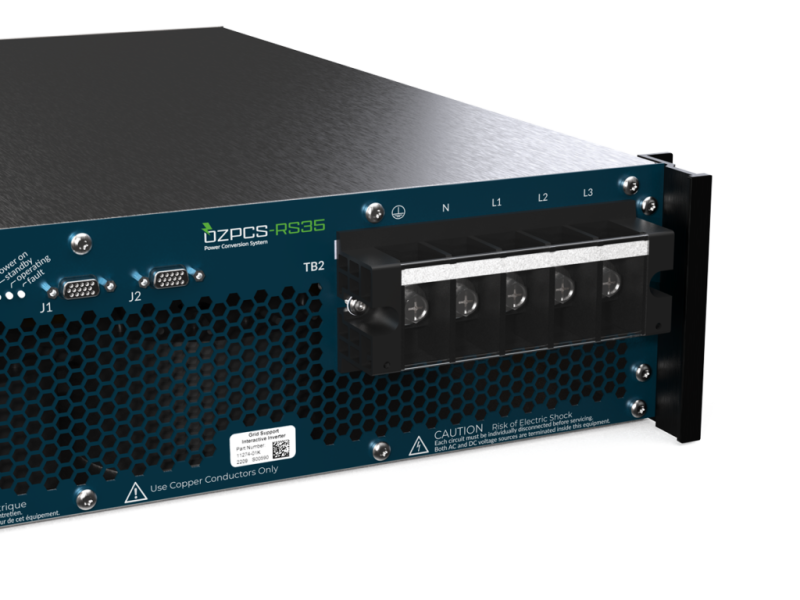

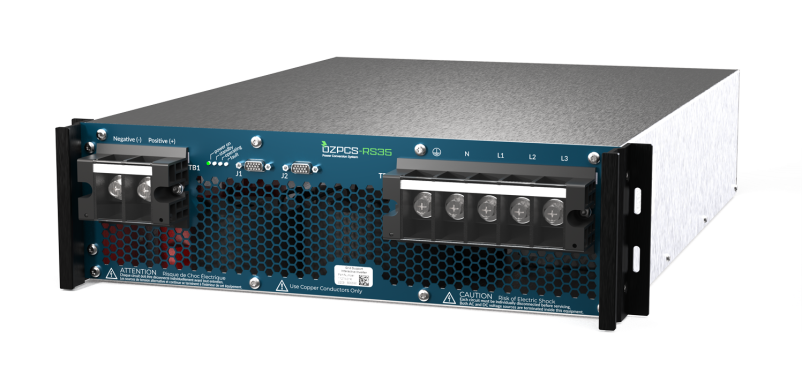

With a compact, 3U form factor, the transformerless OZPCS-RS35 power conversion system installs directly into Li-ion battery racks. Front-side terminations simplify interconnect, and the fully parallelable, 35kW architecture permits easy system expansion. Optimized for 3-phase and split-phase grid connection and 400-800VDC battery voltage, and with grid-tie and grid-forming operating modes, advanced “Smart Inverter” features, and design and certification for energy storage applications, system design doesn’t get any easier.
Features
- Optimized for 120/208V 3-phase and 120/240V split-phase applications
- Supports grid-tie and grid-forming applications

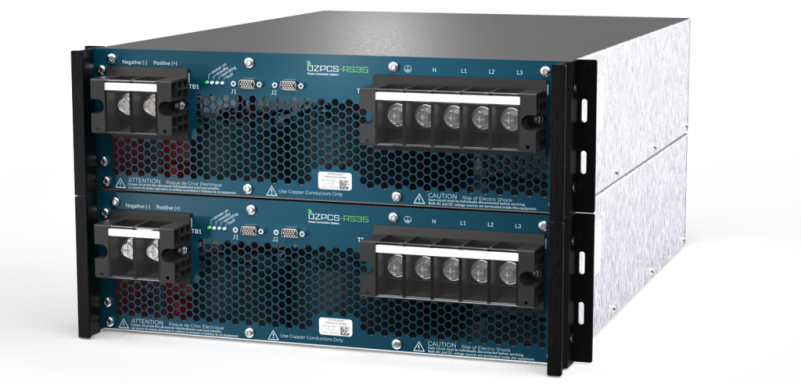

- Easy paralleling allows for quick product scaling
- NEMA 3X outdoor-rated wall-mount design
- Wide AC voltage range
- 50/60Hz
- UL1741-SB smart inverter functions
- 3- and 4-wire transformerless grid interface
- Integrated data logging
- Industry-standard interface
- SunSpec certified
- Modbus RS-485
Power StudioTM
Power Studio is a Windows-based GUI that can be used to easily configure and control the OZIP motor drive.
Firmware: Power Studio
Power StudioTM is a Windows-based GUI that can be used to easily configure and control the OZIP Motor Drive. The tool communicates with the inverter over the CAN or RS-485 serial port and provides a simple, intuitive user interface. Features include:
- Simple tabbed interface
- Dashboard
- Configuration
- Instrumentation
- Dashboard for control and monitoring
- Inverter configuration
- Edit configurations
- Download/upload configurations
- Archive multiple configuration files
- Firmware update utility
Product Specifications
DC Connection
| Operating Voltage Range | 380-820 VDC |
| Full Power Voltage Range | 400-800 VDC |
| Max DC Current | +/- 95A |
| Max DC Power | 36.5kW |
| Wiring Configuration | 2 wire |
AC Connection
| Max AC Power | 35kVA @ 208Vrms |
| Max AC Current (100Arms) | Continuous |
| Max AC Current (130Arms) | 10 seconds max |
| AC Line Voltage | 120/208Vrms 3-phase 120/240Vrms split-phase |
| AC Line Frequency | 60Hz |
| Power Factor | -1 to +1 |
| Current Harmonics | IEEE 1547 Compliant, <3%THD |
| Typical Efficiency | 97% |
Environmental
| Operating Temperature | -20°C to 45°C |
| Operating Temperature (Derated) | 45°C to 55°C |
| Operating Temperature (Short Term) | Full power operation up to 60°C |
| Cooling | Forced air by internal variable speed fans |
| Max Elevation (No Derating) | 1,000m |
| Max Elevation (Derated) | 1,000m – 3,000m |
| Enclosure | 3U, 19″ Rack Mount |
| Weight | 44kg / 100Lbs |
| Ingress Protection | IP20 |
User Interface
| Isolated Communication Link | Modbus RS-485 |
| Register Mapping | SunSpec PCS |
| Isolated Digital Inputs | Emergency Shutoff | Bias Enable |
| Isolated Digital Outputs | User Configurable 1 | User Configurable 2 |
| Indicator LEDs | Faul | Operating | Standby | Power On |
| Warranty | 5 years standard | 5 year warranty extension available |
