DC Power Supply

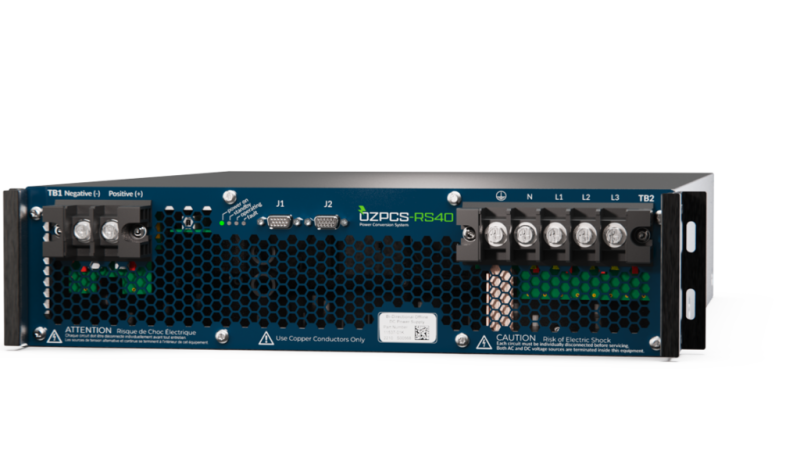

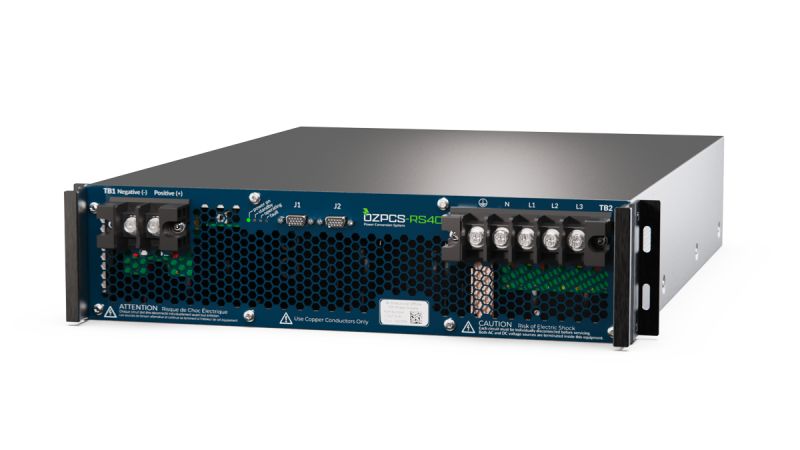

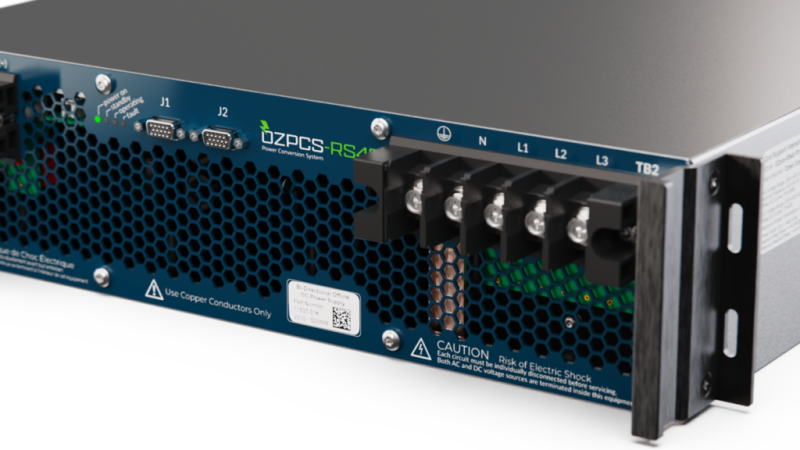

The OZPCS-RS40-PS is a bidirectional, digitally-controlled DC power supply. The bidirectional capability of the supply allows it to both source and sink current, regardless of the operating mode. The transition between sourcing and sinking is seamless and requires no user configuration or control.
Features
Key Features
- Wide AC voltage 50/60Hz operating range
- Compact 2.5U 19” rack mount
- Front side interface for easy cable routing
- Parallelable for high power applications
- Voltage, current and power control modes
- >0.99% power factor
- Transformerless design
- Modbus RS-485 config & control interface
- Software configurable protection features
- Variable speed forced air cooling
Typical Applications
- Single-phase AC switch
- Single-phase rectifiers
- Independent AC switches
- 3 phase AC switch
- 6 pulse rectifier
- 4 quadrant rectifiers
Power StudioTM
Power Studio is a Windows-based GUI that can be used to easily configure and control the OZIP motor drive.
Firmware: Power Studio
Power StudioTM is a Windows-based GUI that can be used to easily configure and control the OZIP Motor Drive. The tool communicates with the inverter over the CAN or RS-485 serial port and provides a simple, intuitive user interface. Features include:
- Simple tabbed interface
- Dashboard
- Configuration
- Instrumentation
- Dashboard for control and monitoring
- Inverter configuration
- Edit configurations
- Download/upload configurations
- Archive multiple configuration files
- Firmware update utility
Product Specifications
DC Interface
| Operating Voltage Range | 0 – 820 V |
| Max DC Current | +/- 75A |
| Max DC Power | 38kW |
| Control Modes | Voltage | Current | Power |
AC Interface
| AC Line Voltage | 208-480Vrms |
| AC Line Frequency | 50/60Hz |
| Rated AC Current | 50Arms |
| Power Factor | -1 to +1 |
| Current Harmonics (TDD) | <5% IEEE 519 |
| Current Harmonics (TDD), rated current | <3% |
| CEC Efficiency | 96.92% |
| Peak Efficiency | 98.22% |
Environmental Ratings
| Operating Temperature | -5°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Pollution Degree | 2 (IEC 1010-1) |
| Max Elevation | 1,000m No Derating 1,000m – 3,000m Derated |
Mechanical Specifications
| Enclosure | 2.5U, 19” rack mount |
| Weight | 97 Lbs |
| Cooling | Forced Air |
| Ingress Protection | IPC20 |
User Interface
| Isolated Communication Link | RS-485 |
| Isolated Digital Inputs | Emergency shutoff | Bias enable |
| Isolated Digital Outputs | 2 User configurable |
